Key Wound Movement | Kieninger APL03 | 35 cm | 354588

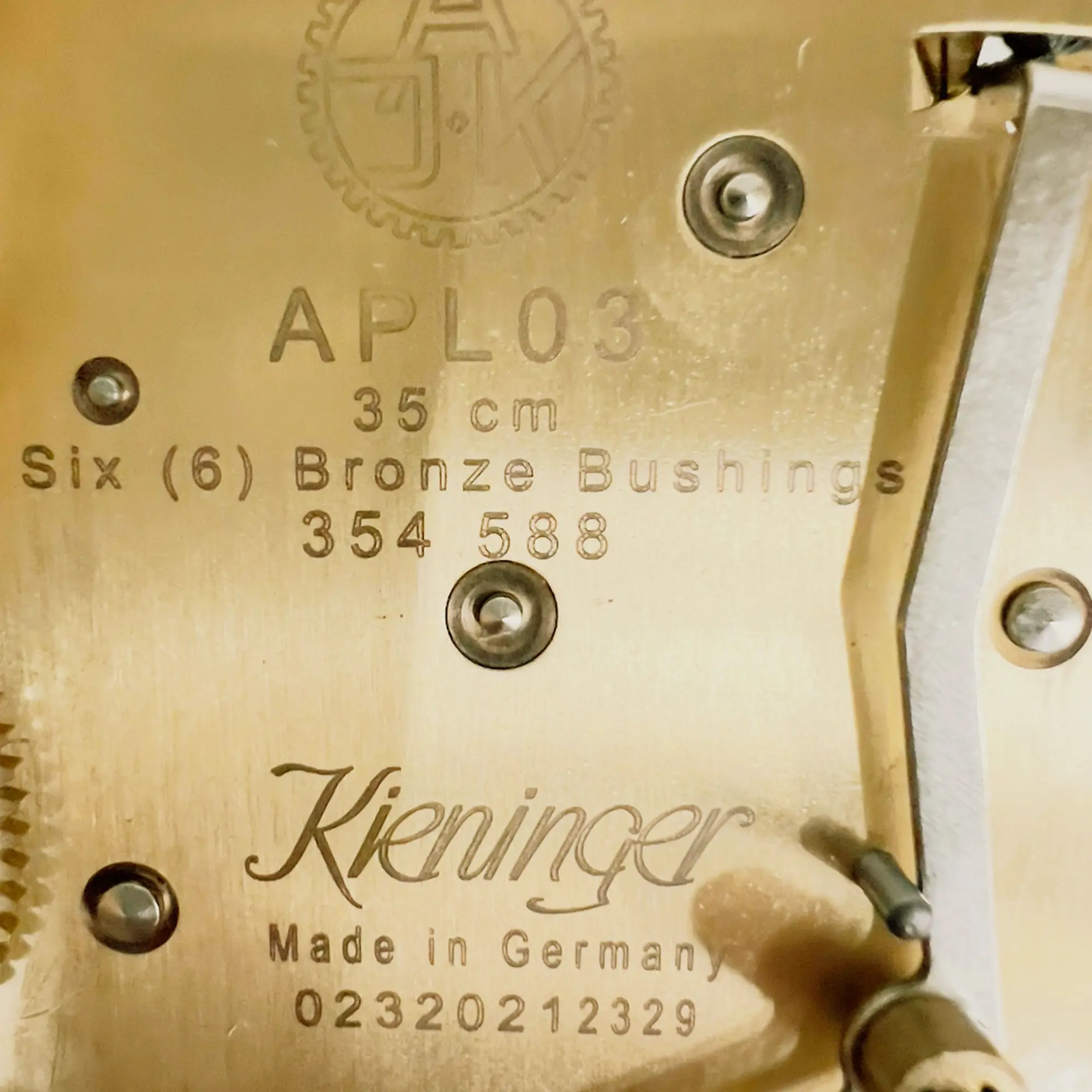

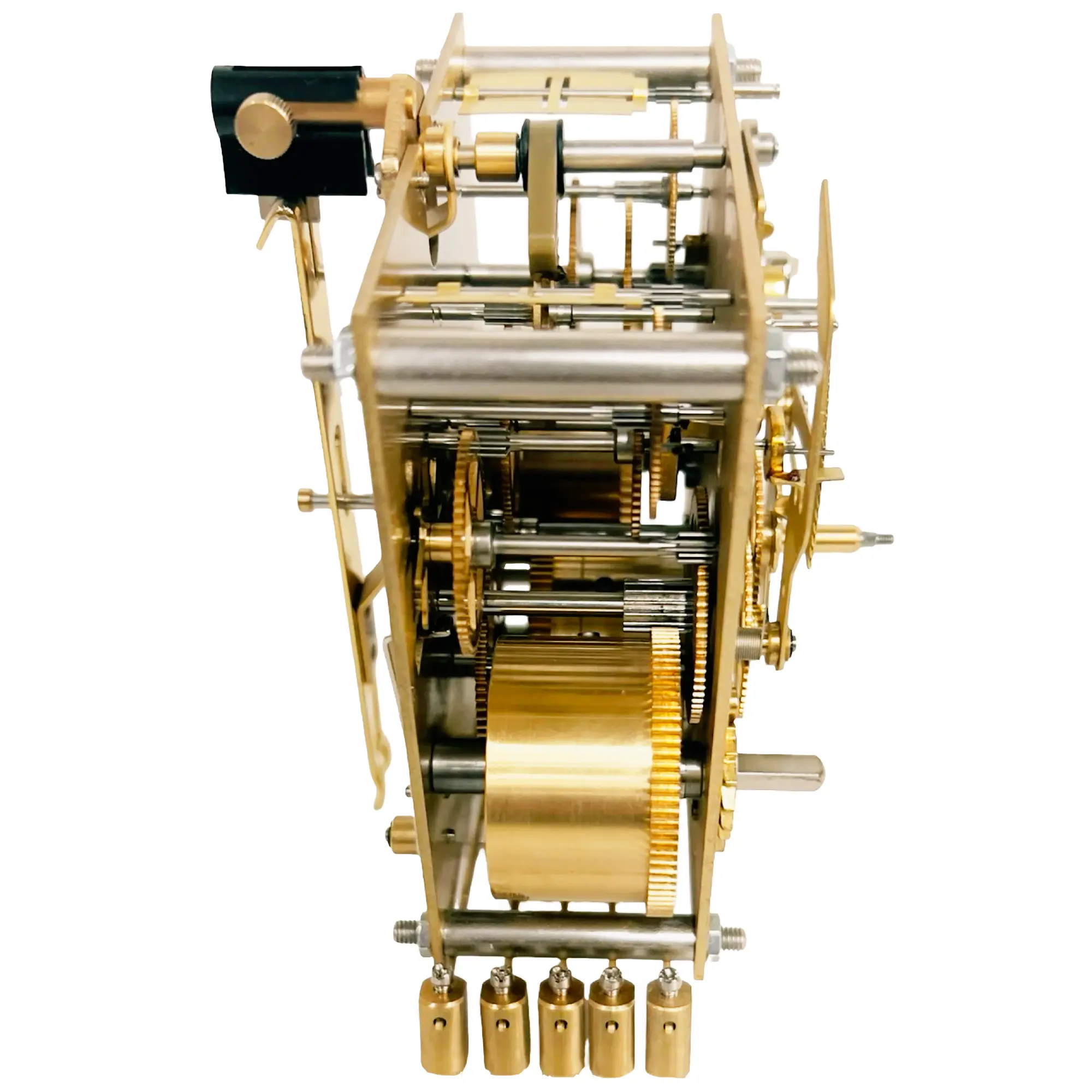

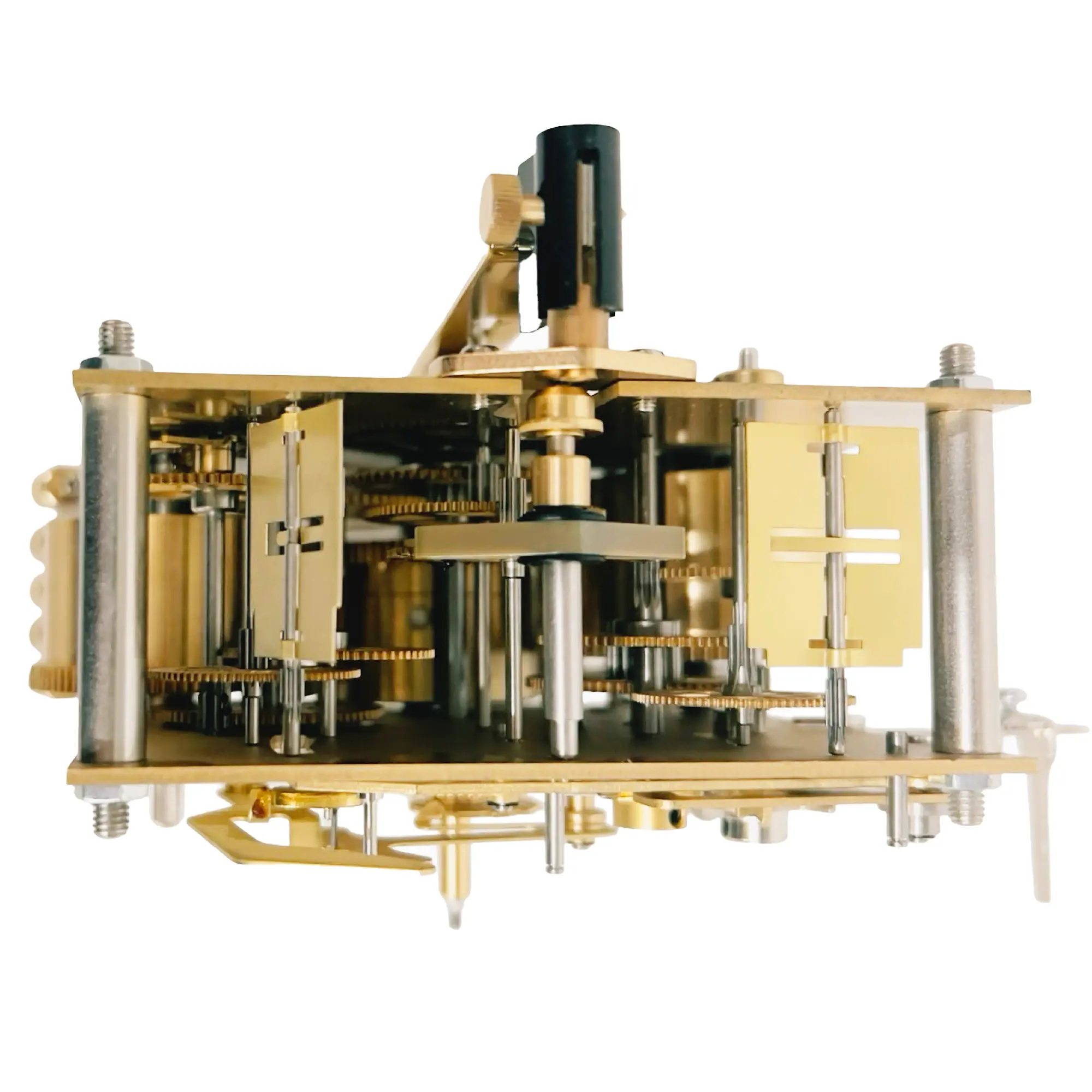

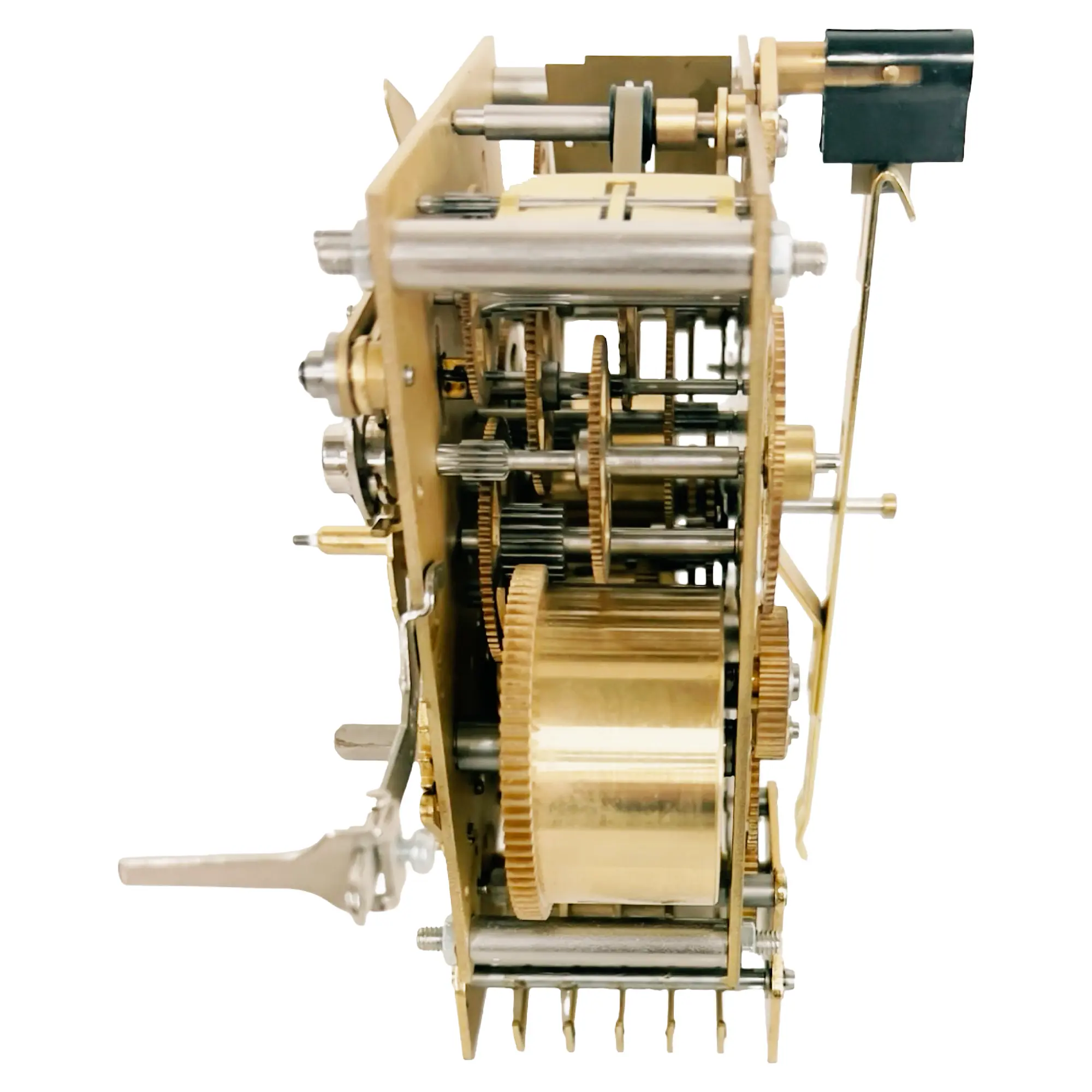

German-made Kieninger APL03 mechanical movement. Precision 8-day, spring-driven unit with 1/4-hour Westminster chime.

• Movement Type: 8-day spring-driven mechanical movement

• Pendulum Length: 35 cm

• Escapement: Graham anchor escapement (pendulum controlled)

• Chime: 4/4 Westminster chime on 5-rod gong (underbeater configuration)

• Hammer Configuration: 5 rear-mounted hammers

• Bushings: Six (6) bronze bushings

• Features: Front winding with safety winding stop; heavy brass plates

• Center Shaft Length: Approx. 27.8 mm (plate to hand nut thread)

• Plate Size: Approx. 100 × 104 mm

• Plate Thickness: Approx. 1.7 mm per plate

• Pair with: Howard Miller chime block: part # 357096
