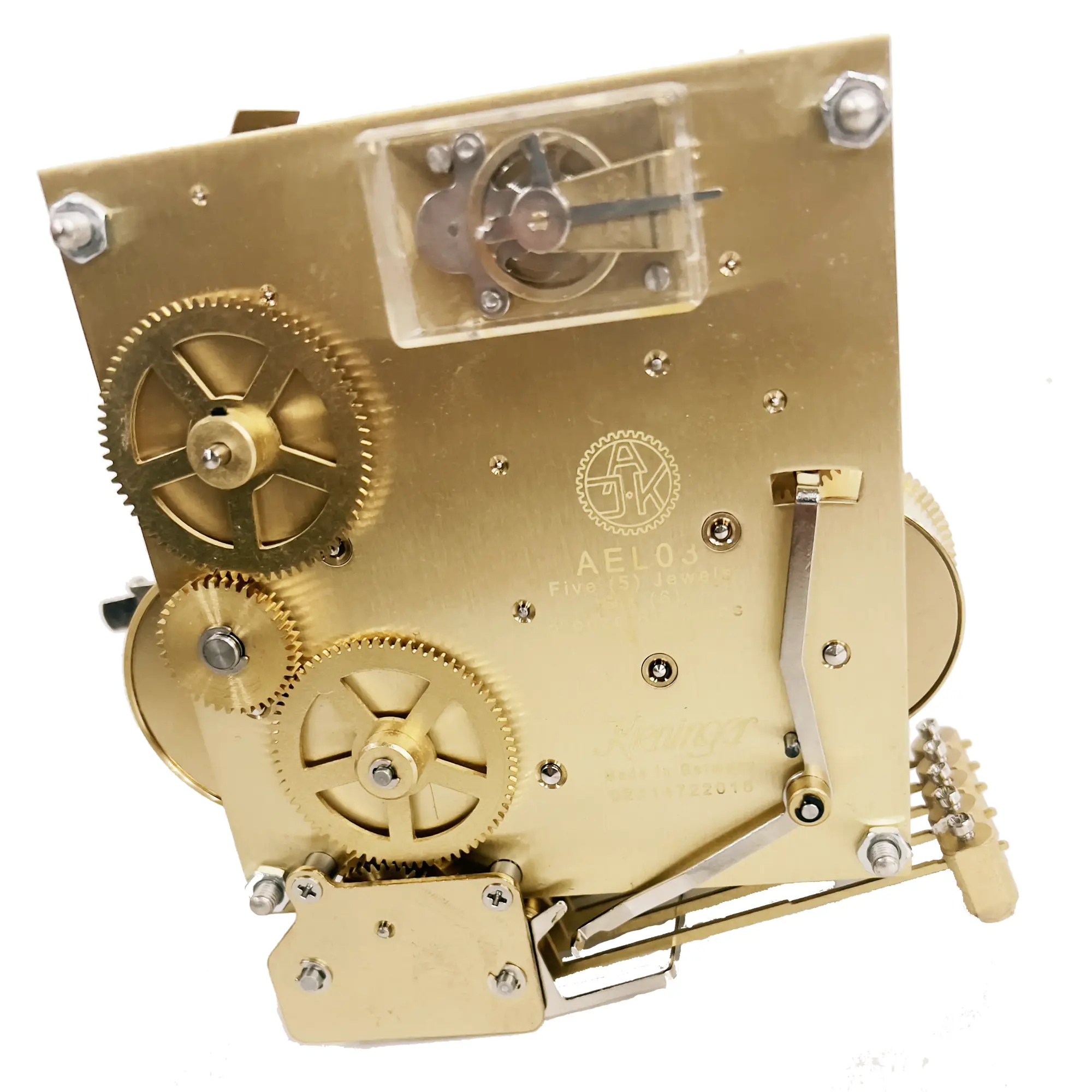

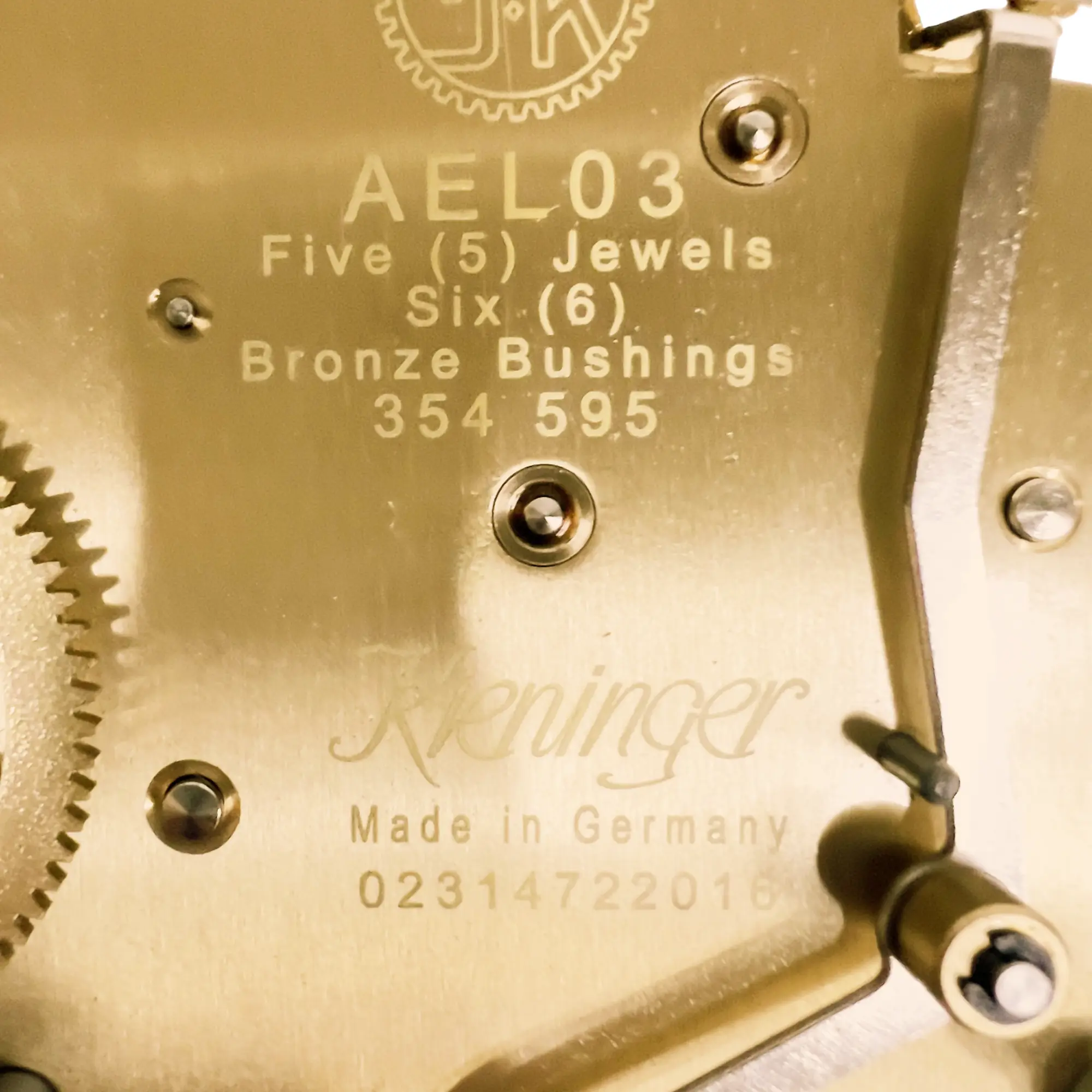

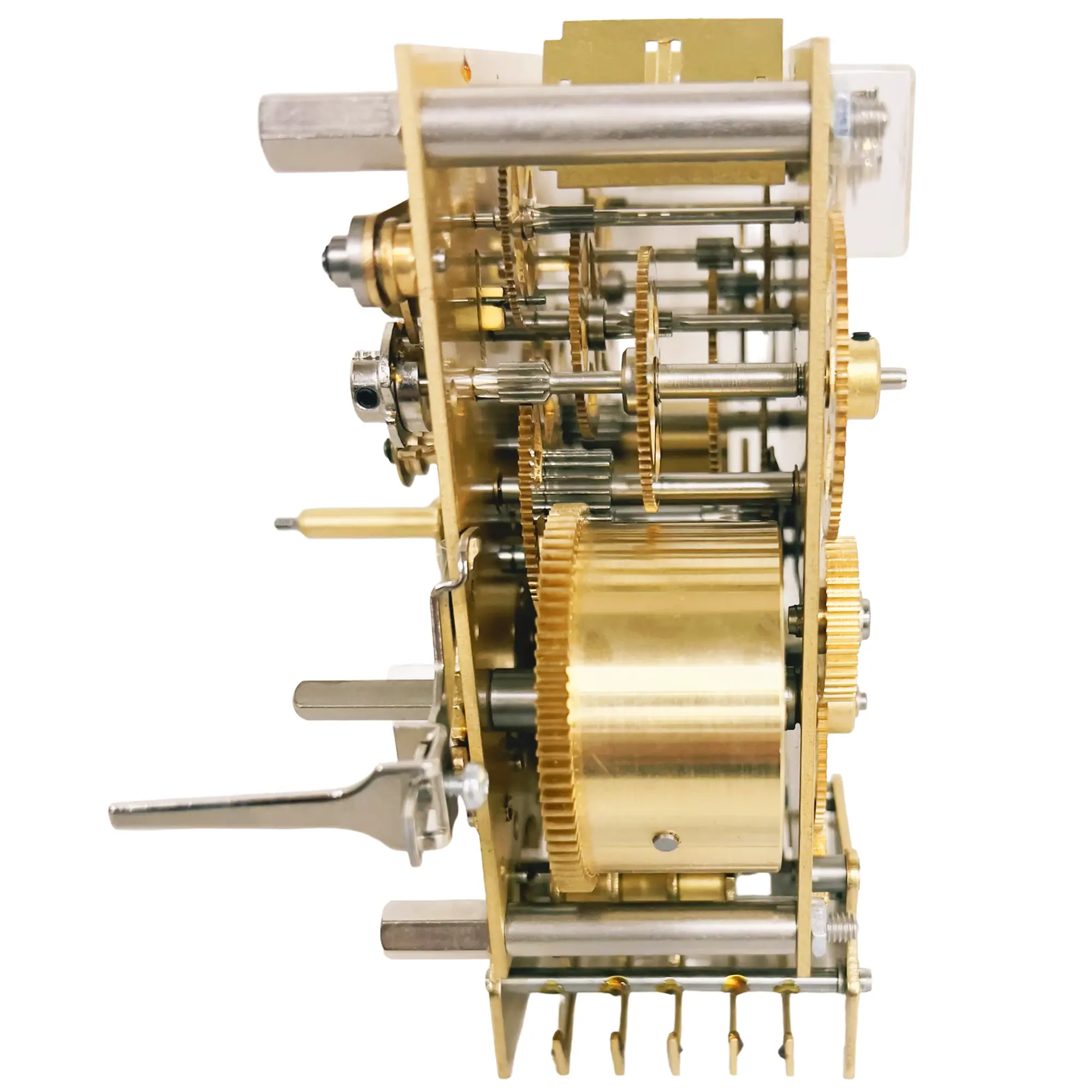

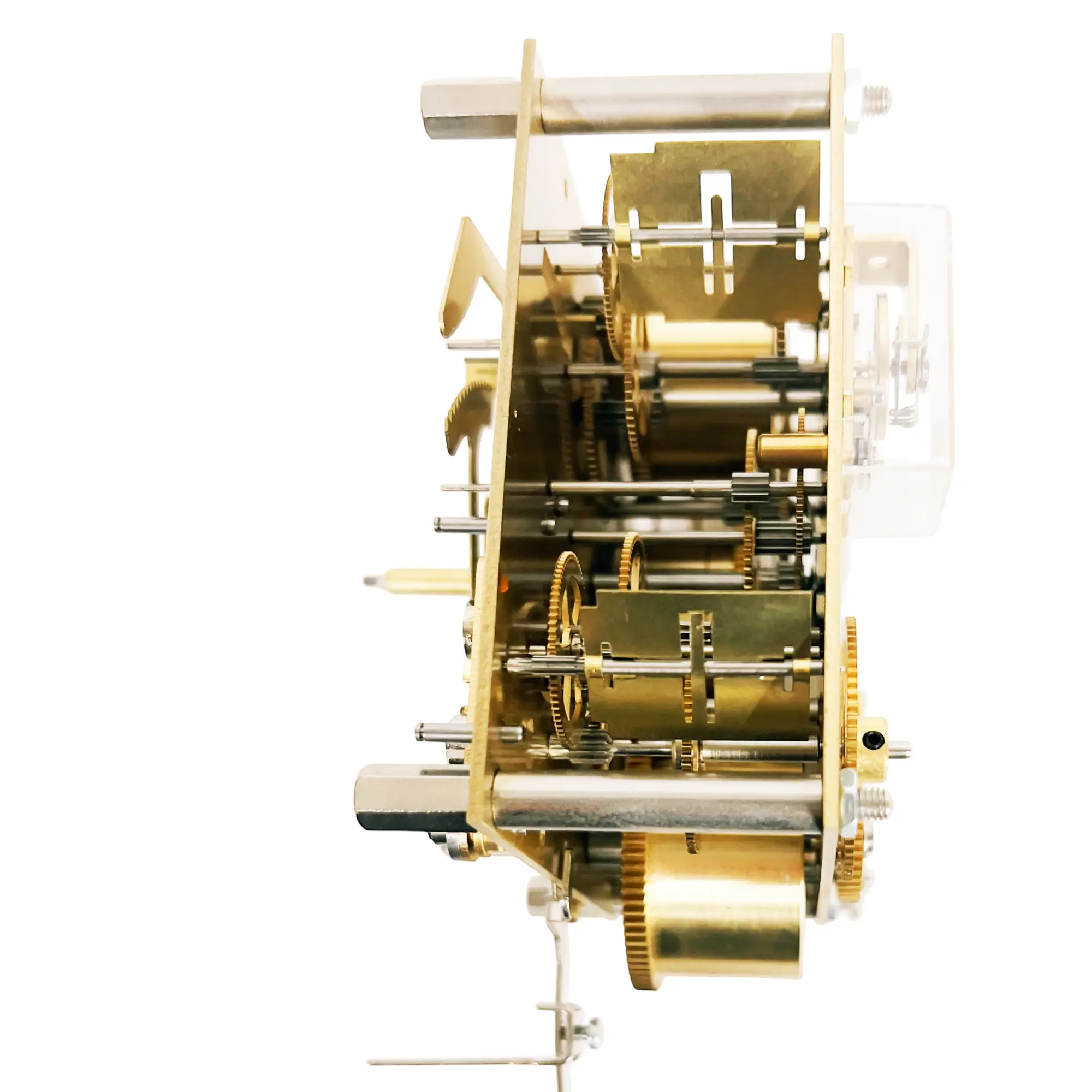

Key Wound Movement | Kieninger AEL03 | 354595
German-made Kieninger AEL03 mechanical movement. Precision 8-day, spring-driven unit featuring 1/4-hour Westminster chime on a 5-rod gong.
Ā
- Movement Type: 8-day spring-driven mechanical movement
- Escapement: Platform balance wheel escapement (no pendulum required)
- Chime: 4/4 Westminster chime on 5-rod gong (rear mounted / underbeater configuration)

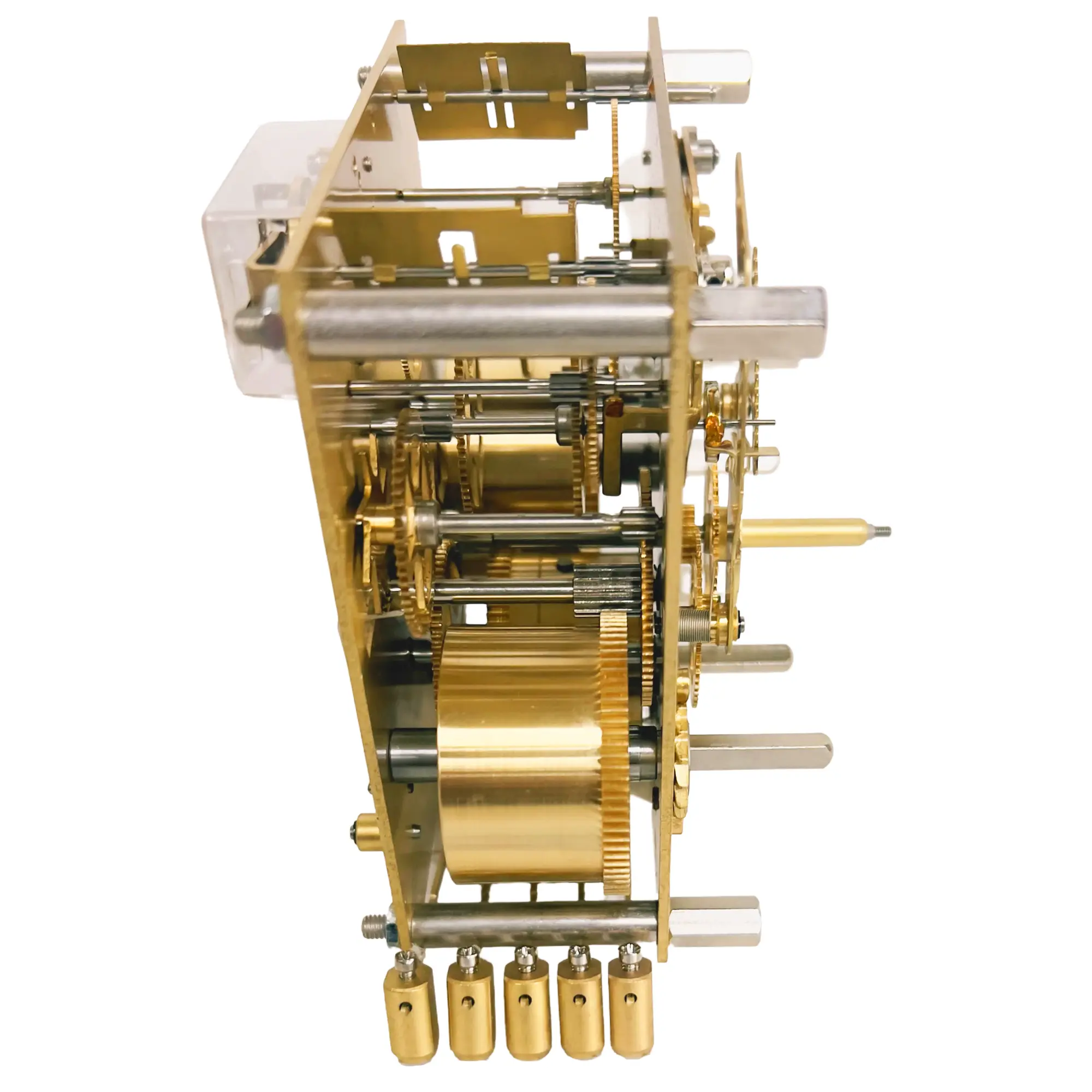

- Hammer Configuration: 5 rear-mounted hammers
- Jewels: Five (5) jewels
- Bushings: Six (6) bronze bushings
- Features: Front winding; automatic night shut-off; heavy brass plates; plug-in mainspring barrel design
- Center Shaft Length: Approx. 35.8 mm (plate to hand nut thread)
- Plate Size: Approx. 100 Ć 104 mm
- Plate Thickness: Approx. 1.7 mm per plate
- Pair with: Howard Miller chime block part # 357093, 357094, 357099
$101.85
Original: $291.00
-65%Key Wound Movement | Kieninger AEL03 | 354595ā
$291.00
$101.85
Description
German-made Kieninger AEL03 mechanical movement. Precision 8-day, spring-driven unit featuring 1/4-hour Westminster chime on a 5-rod gong.
Ā
- Movement Type: 8-day spring-driven mechanical movement
- Escapement: Platform balance wheel escapement (no pendulum required)
- Chime: 4/4 Westminster chime on 5-rod gong (rear mounted / underbeater configuration)
- Hammer Configuration: 5 rear-mounted hammers
- Jewels: Five (5) jewels
- Bushings: Six (6) bronze bushings
- Features: Front winding; automatic night shut-off; heavy brass plates; plug-in mainspring barrel design
- Center Shaft Length: Approx. 35.8 mm (plate to hand nut thread)
- Plate Size: Approx. 100 Ć 104 mm
- Plate Thickness: Approx. 1.7 mm per plate
- Pair with: Howard Miller chime block part # 357093, 357094, 357099
